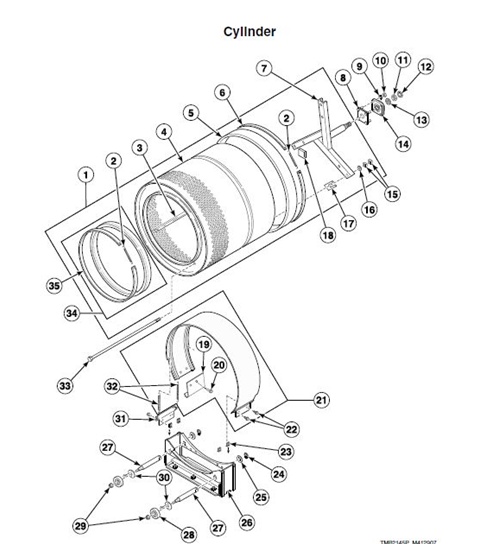

You are here:Home > DRYING TUMBLERS > Stacked 30 Pound Capacity Models Starting Serial No. DTCK9401011756 > Cylinder
1 430580P Cylinder and Trunnion Assembly

2 52310 Spring

3 430099 Rib Assembly

4 430929P Cylinder Assembly

5 430105P Seal Kit Includes adhesive

6 430355P Seal Strap

7 430219 Trunnion Assembly

8 430352 Cylinder Bearing Stud Plate Assembly

9 02834 Washer

10 02428 Nut

11 M400022 Nut

12 M400034 Nut

13 M400991 Washer

14 430260P Support Housing Bearing Assembly

15 M401930 Nut

16 M401947 Washer

17 M401402 Spacer

18 M402144 Felt Pad

19 N/A Sweep Sheet Bumper Kit

20 M400003 Pop Rivet

21 430884P Sweep Sheet Kit

22 33561 Screw

23 F430264 Nut 4 required

24 70061 Retaining Ring 2 required

25 N/A Washer 2 required

26 N/A Air Duct Roller Support Assembly

27 431315 Roller Shaft 2 required

28 430019 Roller Bearing Assembly 2 required

29 430576 Nut 2 required

30 431314 Roller Shaft Retainer 2 required

31 431361 Bracket

32 430954 Spring

33 N/A Cylinder Rib Rod

34 430844P Front Seal Kit Includes strap

35 430845P Front Cylinder Seal Strap

N/A = Part no longer available
