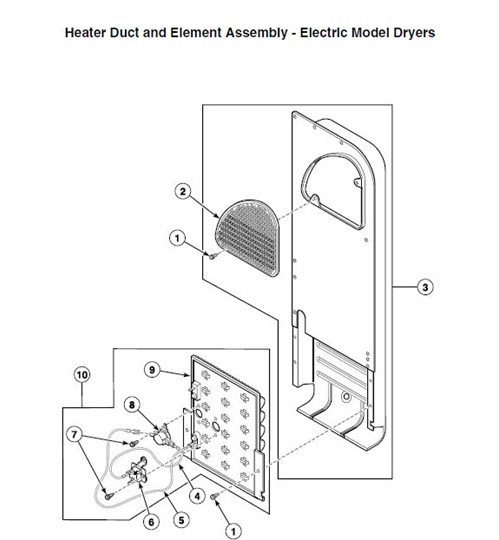

You are here:Home > SMALL DRYER > Commercial Dryers Metered and Nonmetered > Heater Duct and Element Assembly - Electric Model Dryers
1 503688 Screw

2 500820 Outlet Cover

3 510025P Heater Duct and Screw Assembly Includes items 1 and 2

4 510528 Wire Assembly Orange; Thermostat jumper; Attaches to heater assembly

5 510527 Wire Assembly Black; Fuse jumper; Attaches to heater assembly

6 511412 Thermal Fuse Assembly

7 23222 Screw

8 510701 Limit Thermostat

9 510325P Heater 4.75 kW; 208 Volt; Models HDEB07*J99L2, HDET07*F1500, HDEY07*F1500, HDEZ07*F1500, SDE007*F1500,
SDE107*F1500, SDE307*F1500, SDE407*F1500, SDE507*F1500, SDE607*F1500, SDE707*F1500, SDE807*F1500, SDE907*F1500,
SDEA07*J1500, SDEB07*J1500, SDEF07*J1500, SDEH07*J1500, SDET07*F1500, SDEX07*F1500, SDEY07*F1500, SDEZ07*F1500 and
SFE507*F1500

9 510329P Heater Assembly 5.35 kW; 240 Volt; All other models

10 61928 Heater Kit Assembly 4.75 kW; 208 Volt

10 964P3 Heater Kit 5.35 kW; 240 Volt

* Add Letter To Designate Color. L - Almond Q - Bisque W - White
