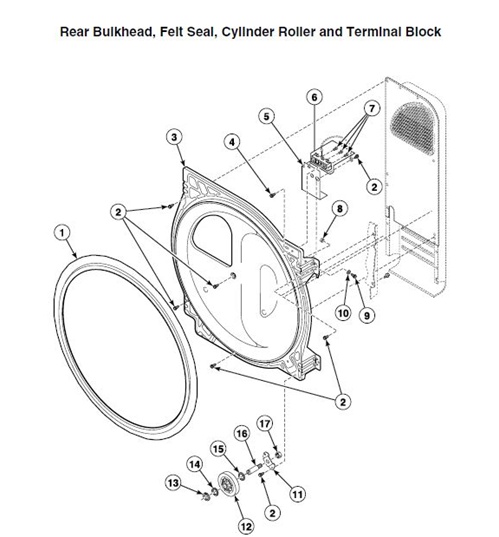

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

Enter Your Email To Sign Up
For Our E-Newsletter:

You are here:Home > SMALL DRYER > Commercial Dryers Metered and Nonmetered > Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

NA 511637P Adhesive Apply to cylinder seal

1 510207P Cylinder Seal Assembly

2 M405188 Screw Models BDEBEFGS171TN01, BDGBEFGS111TN01, KFEG17NF, KFET17NF, KFEY17NF, KFGG19NF, KFGT19NF and
KFGY19NF

2 503688 Screw All other models

3 512698 Rear Bulkhead Polished; Models KFEG17NF, KFET17NF, KFEY17NF, KFGG19NF, KFGT19NF and KFGY19NF

3 511082P Rear Bulkhead Assembly Galvanized; Includes item 1; All other models

4 501285 Screw Electric models

5 505768 Terminal Block Shield Models BDE807*F, BDE907*F, BDET07*F, HDE907*F, HDET07*F, HDEY07*F, JDE907*F, SDE807*F,
SDE807*F1500, SDE907*F, SDE907*F1500, SDE907*F1724, SDEA07*J, SDEA07*J1500, SDEB07*J, SDEB07*J1500, SDEBCRGS171TW02,
SDEBXRGS171TW02, SDEF07*J, SDEF07*J1500, SDESXRGS171TW02, SDET07*F, SDET07*F1500, SDEX07*F, SDEX07*F1500, SDEY07*F
and SDEY07*F1500

5 510237 Terminal Block Shield All other electric models

6 510190P Terminal Block Assembly Includes 3 of item 7; Electric models

7 61199 Screw

8 28447 Nut

9 28448 Screw

10 28449 Washer

11 510100 Cylinder Roller Bracket

12 510708P Cylinder Roller

13 23748 Retaining Ring

14 52549 Washer

15 504082 Washer

16 56461P Shaft

17 56156 Nut

* Add Letter To Designate Color. L - Almond Q - Bisque W - White
