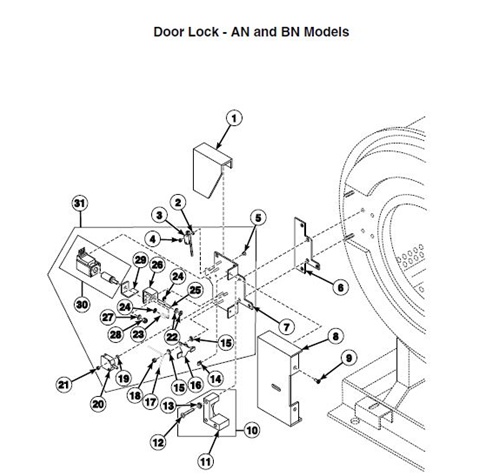

1 F320200 Door Lock Splash Shield
2 F431901 Spacer
3 F200203200 Door Lock Microswitch
4 F430225 Nut
5 F430977 Screw
6 F8059701 Door Lock Plate Shim
7 F8066701 Door Lock Plate Assembly
8 F603003 Door Lock Assembly Cover
9 F430956 Screw
10 F746808 L-Catch Kit Includes items 11-13
11 F150261 Door Lock Catch Casting
12 F430982 Screw
13 F431100 Washer
14 F430264 Nut
15 F431902 Washer
16 F0636636-00 Door Lock Switch Lever
17 F310110 Door Lock Torsion Spring
18 F430232 Nut
19 F431901 Spacer
20 F340200 Door Switch
21 F430231 Nut
22 F431147 Washer
23 F310137 Door Lock Pin Release Spring
24 F310205 E-Ring Retainer
25 F431231 Door Locking Linkage Pin
26 F150455 Door Lock Pin Linkage
27 F431123 Washer
28 F431017 Nut
29 F0636103-00 Door Lock Retainer Latch
30 F0300131-00P Door Lock Solenoid 220 Volt
31 F200136801 Door Lock Assembly C-voltage; Includes items 2-5, 7, 14-29 and the wire harness
31 F200136800P Door Lock Assembly All other voltages; Includes items 2-5, 7, 14-29 and the wire harness
|
|
|
|
