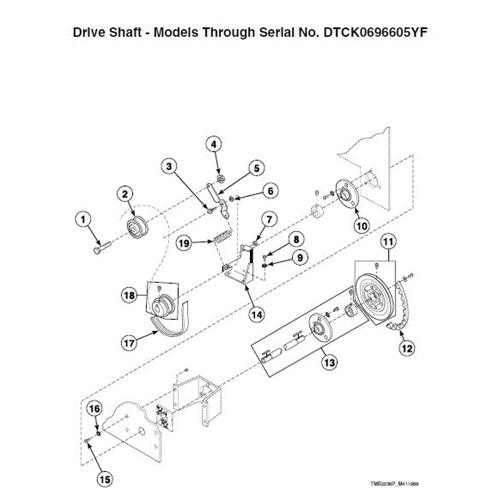

NA 27220 Screw
NA 26509 Washer
1 430648 Screw
2 430619 Drum Idler Wheel Assembly
3 431539 Screw
4 56156 Nut
5 430263 Cylinder Idler Arm
6 430782 Washer
7 52566 Nut
8 02422 Screw
9 M400017 Washer
10 N/A Flange Bearing Will need to order the following items from the Drive Shaft section: 10, 15-19, 23, 25 and 26
11 430800P Sheave Steel; With set screw
12 430054 Belt
13 N/A Flange Bearing and Drive Shaft Will need to order the following items from the Drive Shaft section: 10, 15-19, 23, 25 and 26
14 430193 Cylinder Idler Bracket
15 M400057 Screw
16 02834 Washer
17 430104P Belt Poly-V “J”; 8 rib; 106.75 inches
18 430050P Pulley Kit
19 N/A Drum Idler Spring
N/A = Part no longer available
|
|
|
|
