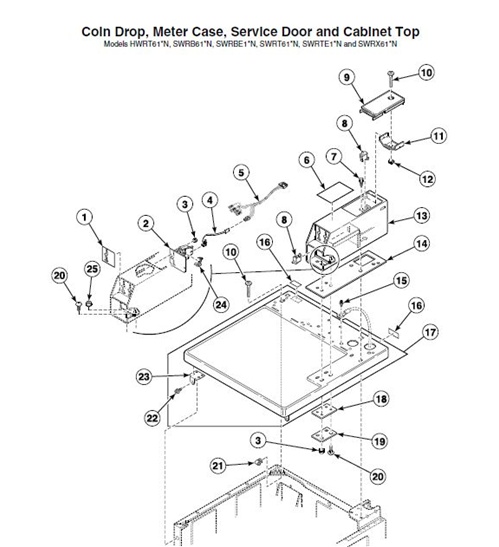

Coin Drop, Meter Case, Service Door and Cabinet Top

Enter Your Email To Sign Up
For Our E-Newsletter:

You are here:Home > HORIZON > Commercial Frontload Washers > Coin Drop, Meter Case, Service Door and Cabinet Top

1 38717 Single Overlay

2 38479P Coin Drop

3 29786 Nut

4 200674P Opto Coupler

5 802905 Harness Assembly Model SWRX61*N

5 802904P Harness Assembly All other models

6 800137 Rear Control Operating Instruction Label

7 36048 Screw

8 504570 Switch

9 39874WP Service Door Assembly White

9 39874QP Service Door Assembly Bisque

10 503673 Screw

11 30642 Meter Case Locking Bracket

12 30647 Nut

13 38724W Meter Case Assembly White

13 38724Q Meter Case Assembly Bisque

14 26354 Meter Case Gasket

15 20530 Screw

16 505281 Disconnect Power Warning Label

17 511527WP Top Kit White; Includes items 22 and 23

17 511527QP Top Kit Bisque; Includes items 22 and 23

18 35526 Meter Case Bracket Gasket

19 35525 Meter Case Lockdown Bracket

20 02505 Bolt

21 27222 Nut

22 503661 Screw

23 510146 Bracket

24 201595P Wire Guard Anti-stringing device; Add to coin drops manufactured starting January 2005

25 802337 Nut

* Add Letter To Designate Color. Q - Bisque W - White
