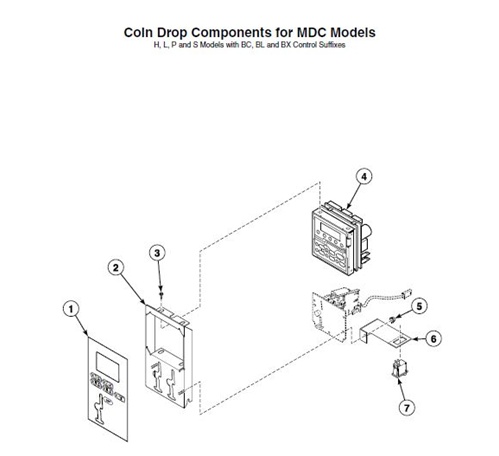

You are here:Home > DRYING TUMBLERS > Stack 30 Pound Capacity Models Through Serial No. 0602004143 > Coin Drop Components for MDC Models
NA 70406501 Fuse Secondary; 1.25 Amp

NA 39564 Coin Drop Overlay S models with BL* control suffix; Cover

NA 70246301 Coin Cover Overlay H, L and P models with BL* control suffix; Cover

NA 70286701 Overlay P models with BL* control suffix; Upper

NA 70321001 Overlay P models with BC** and BX** control suffixes

NA 70129501 Overlay P models with BC** and BX** control suffixes; Upper; Single drop

NA 70129601 Overlay P models with BC** and BX** control suffixes; Upper; Dual drop

NA 70275401 Overlay H models with BL* control suffix

NA 70286801 Overlay P models with BL* control suffix; Lower

NA 70129801 Overlay P models with BC** and BX** control suffixes; Lower; Dual drop

NA 70211703P Jumper Calibration Assembly

NA 70206301P Control Panel Harness Assembly HT, L, PT and ST models

NA 70235801 Control Panel Harness Assembly HA, HU, PA, PU, SA and SU models

1 70257801 Overlay L and S models with BC, BL* and BX control suffixes; Text; Single Drop

1 70283301 Overlay P models with BC**, BL* and BX** control suffixes; Upper; Text

1 70283401 Overlay P models with BC**, BL* and BX** control suffixes; Lower; Text

1 70258101 Overlay H models; Text; Single drop

1 70257802 Overlay L and S models with BC and BX control suffixes; Text; Dual drop

1 70261101 Overlay L and S models with BC, BL and BX control suffixes; Icon; Single drop

1 70261102 Overlay L and S models with BC and BX control suffixes; Icon; Dual drop

1 70258102 Overlay H models with BC and BX control suffixes; Dual drop

1 70261301 Overlay H models with BC, BL* and BX control suffixes; Icon; Single drop

1 N/A Overlay H models with BC and BX control suffixes; Icon; Dual drop

2 70291101P Control Plate Kit S models

2 70291201P Control Plate Kit H models

3 501524 Screw 4 required for mounting control

4 511867P Control Assembly

5 29786 Nut 2 required

6 70292601 Audit Switch Bracket

7 70107001 Pushbutton Switch

N/A = Part no longer available

* NOTE: BL control suffix requires an overlay and overlay cover specific to model.

** NOTE: P models with BC or BX control suffixes require an overlay and coin drop overlay.
