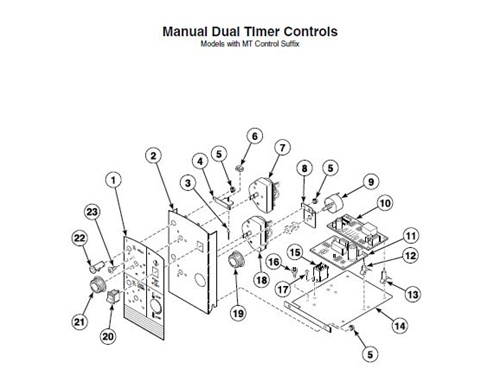

NA M4724P3 Manual Timer Control Kit H models
NA M4694P3 Manual Timer Control Kit All other models
NA 70084103 Jumper Configuration Assembly
NA 70236301 Control Panel Harness Assembly
1 70114401 Overlay H models; Text
1 70135601 Overlay H models; Icon
1 70128101 Overlay C, D, I, L, S and Y models; Text
1 N/A Overlay S models; Icon
1 70129901 Overlay P models; Upper
1 N/A Overlay P models; Lower
1 70135401 Overlay C, D, I, L and S models; Icon
2 70175906 Control Door Assembly H models; Includes studs
2 70175905 Control Door Assembly All other models; Includes studs
3 M400003 Pop Rivet
4 70119801 Latch Mounting Bracket
5 70054 Nut 6 required
6 431318 Control Door Latch
7 N/A Timer Heat; 50 Hertz; 60 minute
7 70131701P Timer Heat; 60 Hertz; 60 minute
8 70108001 Potentiometer Mounting Bracket
9 431353P Temperature Switch Potentiometer; Includes nuts
10 431347P Thermostat Module
11 70175301P Timer Control Assembly
12 70178801 Circuit Board Support 4 required
13 34896 Circuit Board Support 4 required
14 70179101 Mounting Bracket
15 M412534 Relay 2 required per control
16 430497 Screw
17 M402797 Screw
18 M412079P Timer Cooling; 50 Hertz; 15 minute
18 70131801P Timer Cooling; 60 Hertz; 15 minute
19 44020502 Knob H models; Temperature
19 44104601 Temperature Knob L, P and S models
19 44020503 Temperature Knob C, D and I models
20 70108501 Start Switch
21 M410927 Knob H models; Timer
21 70082101 Timer Knob L, P and S models
21 M400773 Knob C, D and I models
22 70082201 Indicator Light
23 44041301 Screw 3 required per timer
N/A = Part no longer available
|
|
|
|
