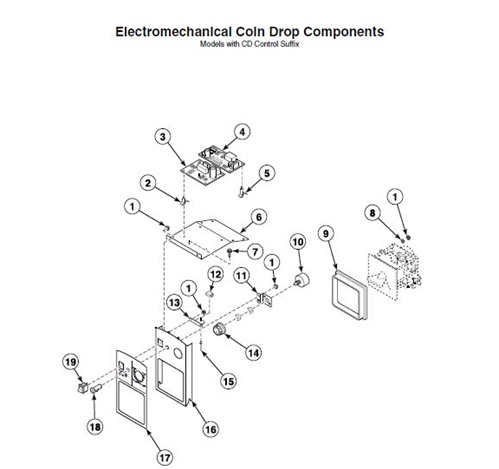

You are here:Home > DRYING TUMBLERS > Stack 30 Pound Capacity Models Through Serial No. 0602004143 > Electromechanical Coin Drop Components
1 70054 Nut 9 required

2 70178801 Circuit Board Support 4 required

3 70175301P Timer Control Assembly

4 431347P Thermostat Module

5 34896 Circuit Board Support 4 required

6 70179001 Mounting Bracket

7 430497 Screw Ground

8 M405535 Washer 3 required

9 70061701 Rotary Drop Shroud

10 431353P Temperature Switch Potentiometer; Includes nuts

11 70108001 Potentiometer Mounting Bracket

12 431318 Control Door Latch

13 70119801 Latch Mounting Bracket

14 44020502 Knob H models; Temperature

14 44104601 Temperature Knob L, M, N, P and S models

14 44020503 Temperature Knob C, D and I models

15 M400003 Pop Rivet 1/8 inch

16 70175908 Control Door Assembly H models; Includes studs

16 70175907 Control Door Assembly All other models; Includes studs

17 70115501 Overlay HA and HT models; Text

17 70136801 Overlay HU models; Icon

17 70128201 Overlay All other models

18 70082201 Indicator Light

19 70108501 Start Switch
