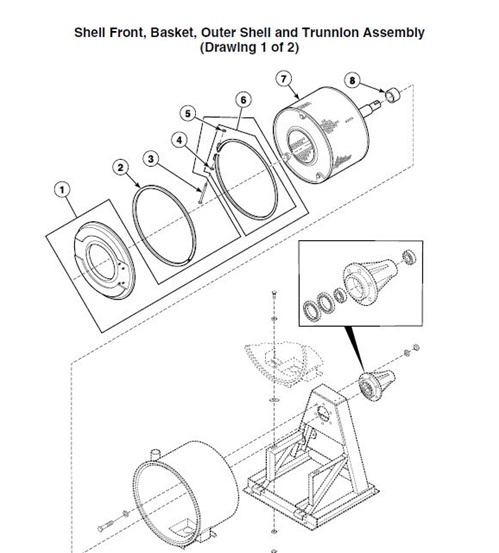

Shell Front, Basket, Outer Shell and Trunnion Assembly (Drawing 1 of 2)

Enter Your Email To Sign Up
For Our E-Newsletter:

You are here:Home > FRONTLOAD EXTRACTOR > 2 Speed Electronic Control, Mechanical Timer and P, S, or V Computer Models > Shell Front, Basket, Outer Shell and Trunnion Assembly (Drawing 1 of 2)

1 F741300P Shell Front Kit HC18, HC25, SC18, SC25, UC18 and UC25 MC, MD, MH, MN, MV, MX, PC, PN, SN, SN, VC and VN models; Includes item 6
1 F609270-1 Shell Front Assembly DC25, HC18, HC25, NC18, SC18 and SC25 EC, EP, EX, NC, NP, NR and NX models; Includes item 6
1 F632006P Shell Front Assembly HC27, NC27, SC27 and UC27 models; Includes item 6
1 F741301-01 Shell Front Kit HC35, SC35 and UC35 models; Includes item 6
1 F609272-1P Shell Front Assembly HC50, NC50 and SC50 EC, EP, EX, NC, NP, NR and NX models; Includes item 6
1 F741302-01 Shell Front Kit HC50, SC50 and UC50 MC, MD, MH, MN, MV, MX, PC, PN, SN, VC and VN models; Includes item 6
2 F792000 Shell Front Gasket Kit Includes items 3-5 and F410102 Clear Sealant
2 F200001600P Shell Band Gasket
3 F430518 Screw
4 F430317 Washer
5 F430215 Nut
6 F741700 Shell Band Kit HC18, HC25, SC18, SC25, UC18 and UC25 MC, MD, MH, MN, MV, MX, PC, PN, SN, VC and VN models; Includes items 4 and 5
6 F602757 Shell Band Assembly DC25, HC18, HC25, NC18, SC18 and SC25 EC, EP, EX, NC, NP, NR and NX models
6 F631977 Shell Band Assembly HC27, NC27, SC27 and UC27 models; Includes items 4 and 5
6 F741701 Shell Band Kit HC35, SC35 and UC35 models; Includes items 4 and 5
6 F741702 Shell Band Kit HC50, NC50, SC50 and UC50 models; Includes items 4 and 5
7 N/A Basket Assembly HC18, NC18, SC18 and UC18 models; Order F934P3 Upgrade Kit
7 F934P3 Upgrade Kit HC18, NC18, SC18 and UC18 models; Includes item 8, F8123501 Basket Assembly and F747001 Trunnion Kit
7 F8123501 Basket Assembly HC18, NC18, SC18 and UC18 models that have been retrofitted with F934P3 Upgrade Kit; Includes item 8
7 F8123601P Basket Assembly DC25, HC25, SC25 and UC25 models; Includes item 8
7 F8114201P Basket Assembly HC27, NC27, SC27 and UC27 models; Includes item 8
7 F603225-1 Basket Assembly HC35, SC35 and UC35 models; Includes item 8
7 F603900-1 Basket Assembly HC50, NC50, SC50 and UC50 models; Includes item 8
8 F8312002P Shaft Seal Sleeve HC18, NC18, SC18 and UC18 models
8 F8312001P Shaft Seal Sleeve HC18, NC18, SC18 an UC18 models that have been retrofitted with F934P3 Upgrade Kit; DC25, HC25, SC25 and UC25 models
8 F8312004P Shaft Seal Sleeve HC27, NC27, SC27 and UC27 models
8 F8312003P Shaft Seal Sleeve HC35, SC35 and UC35 models
8 F8312008P Shaft Seal Sleeve HC50, NC50, SC50 and UC50 models
N/A = Part no longer available
